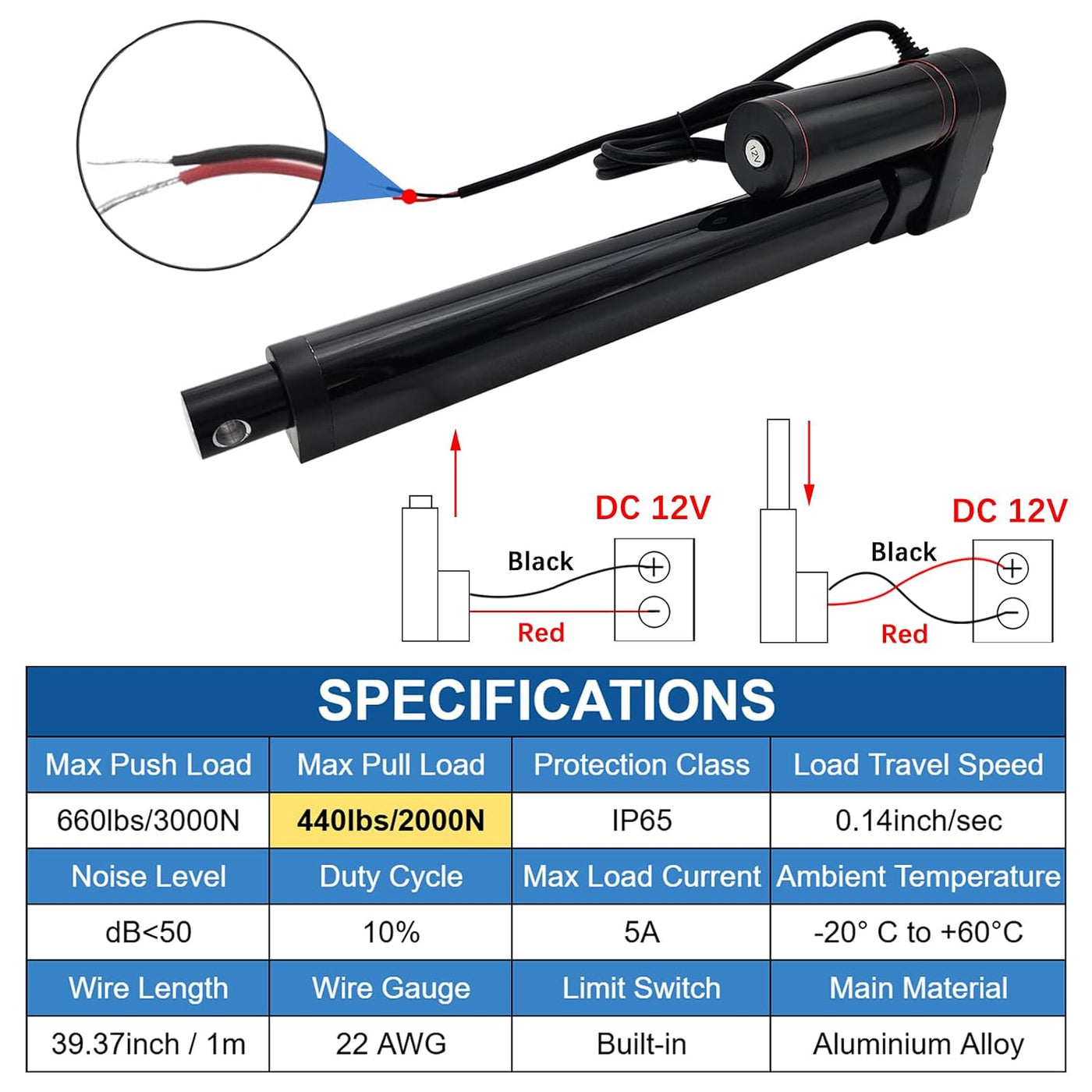

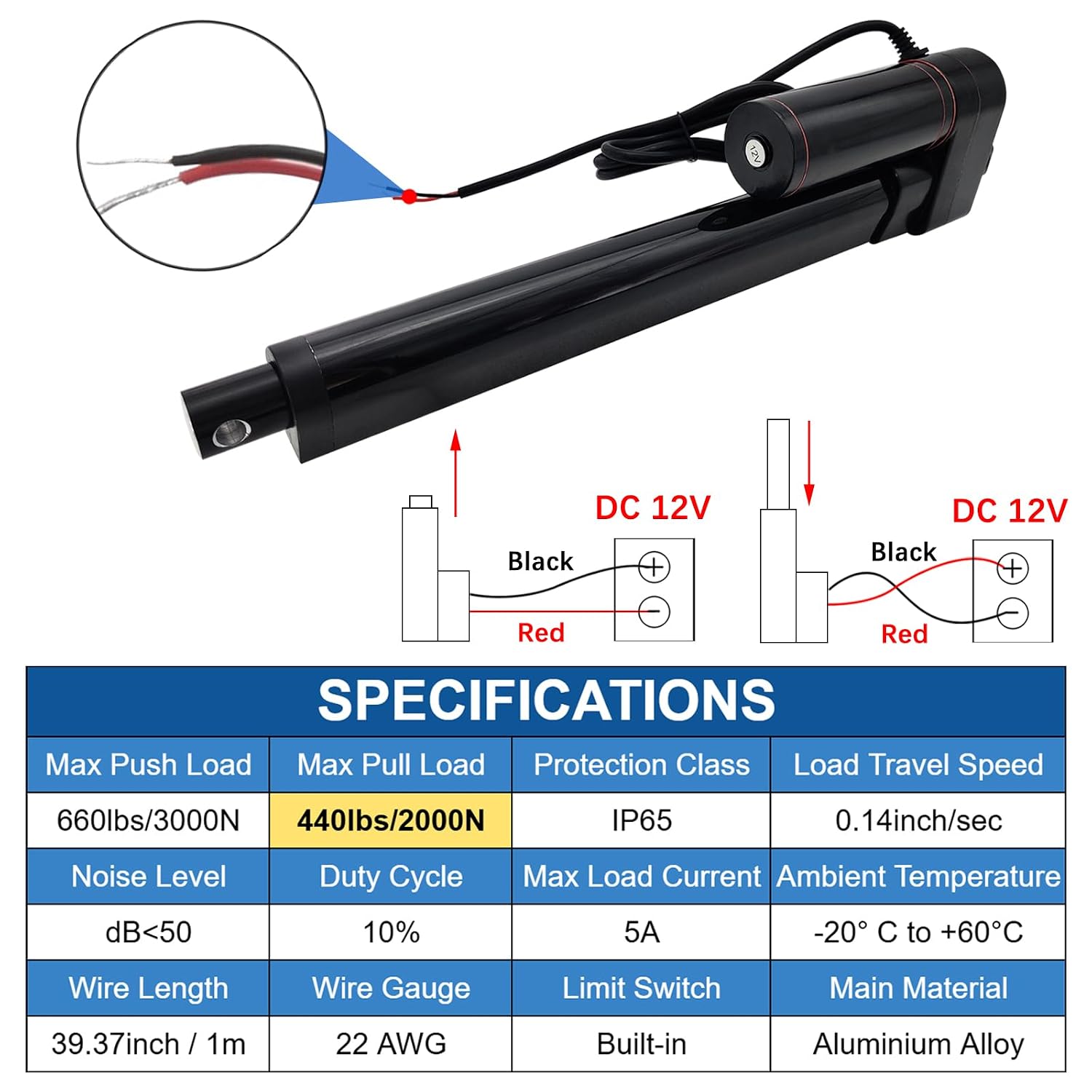

• Powerful 12V Linear Actuator: Operates on 12V DC with a maximum thrust capacity of 3000N (660 lbs) and maximum pull capacity of 440 lbs for demanding applications.

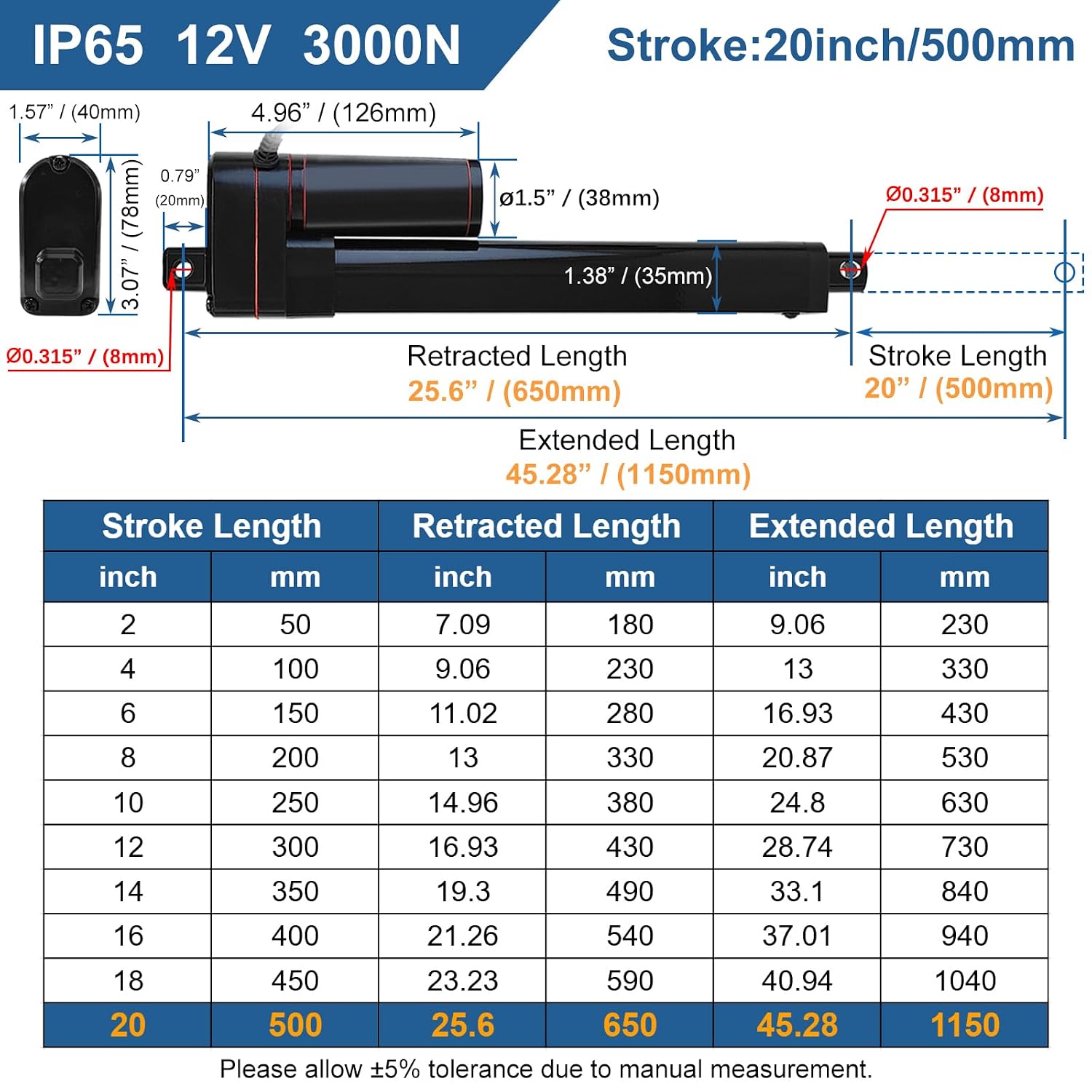

• 20-Inch Stroke Length: Provides a 500 mm (20") stroke, measuring approximately 650 mm (25.6") retracted and 1150 mm (45.28") fully extended.
• 5 mm/s Travel Speed: Delivers a no-load movement speed of approximately 5 mm/s (0.2"/s) for controlled linear motion.

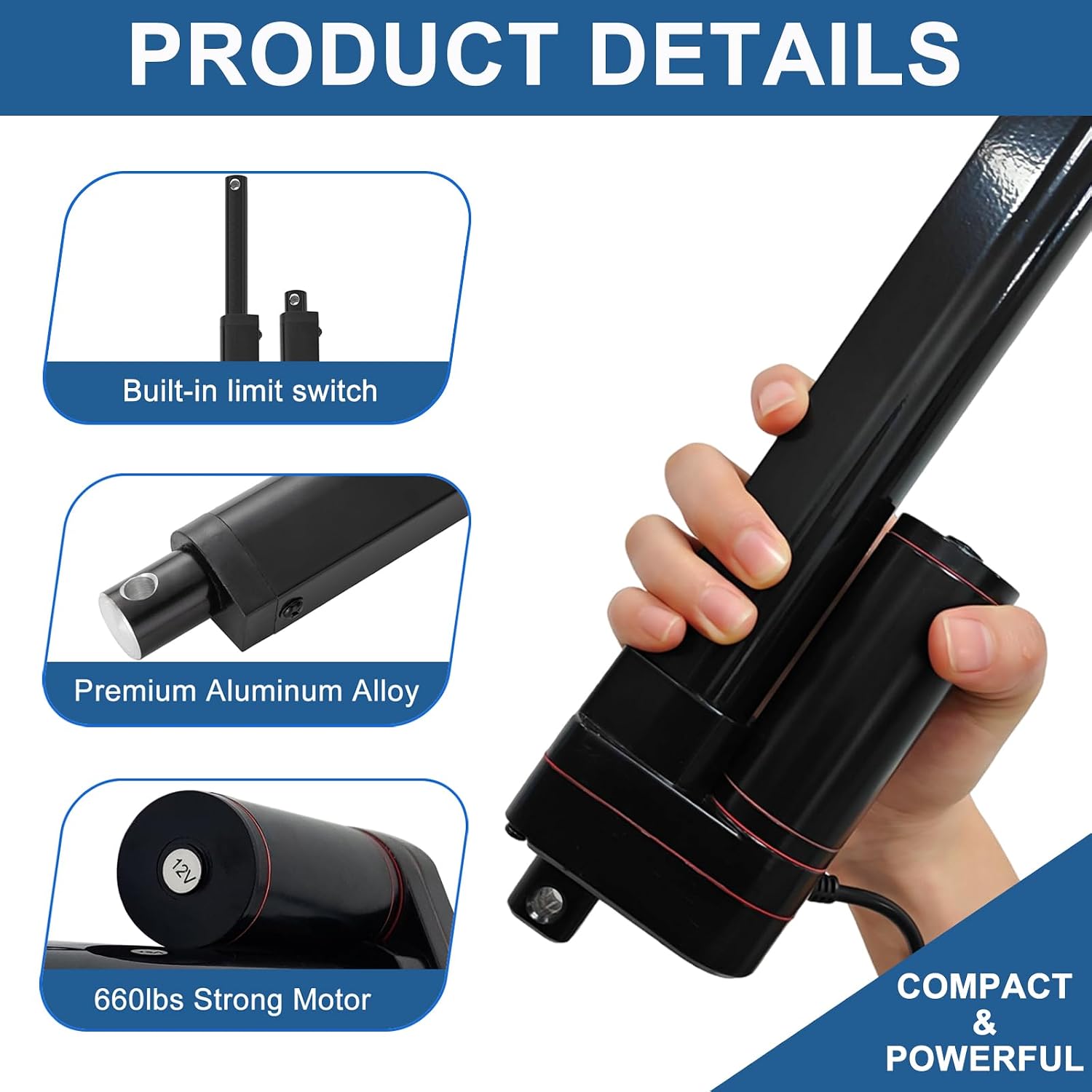

• Heavy-Duty Aluminium Construction: High-quality aluminium alloy housing provides excellent strength, heat dissipation, corrosion resistance, and long-term durability.
• Protective Powder-Coated Finish: Black powder coating provides additional resistance against corrosion and everyday environmental exposure.
• Upgraded High-Performance Motor: Powerful motor provides reliable linear movement for heavy-duty lifting, pushing, and pulling applications.
• Quiet Operation: Low-noise design operates at ≤50 dB, while the durable plastic turbine helps provide smooth and quiet movement.

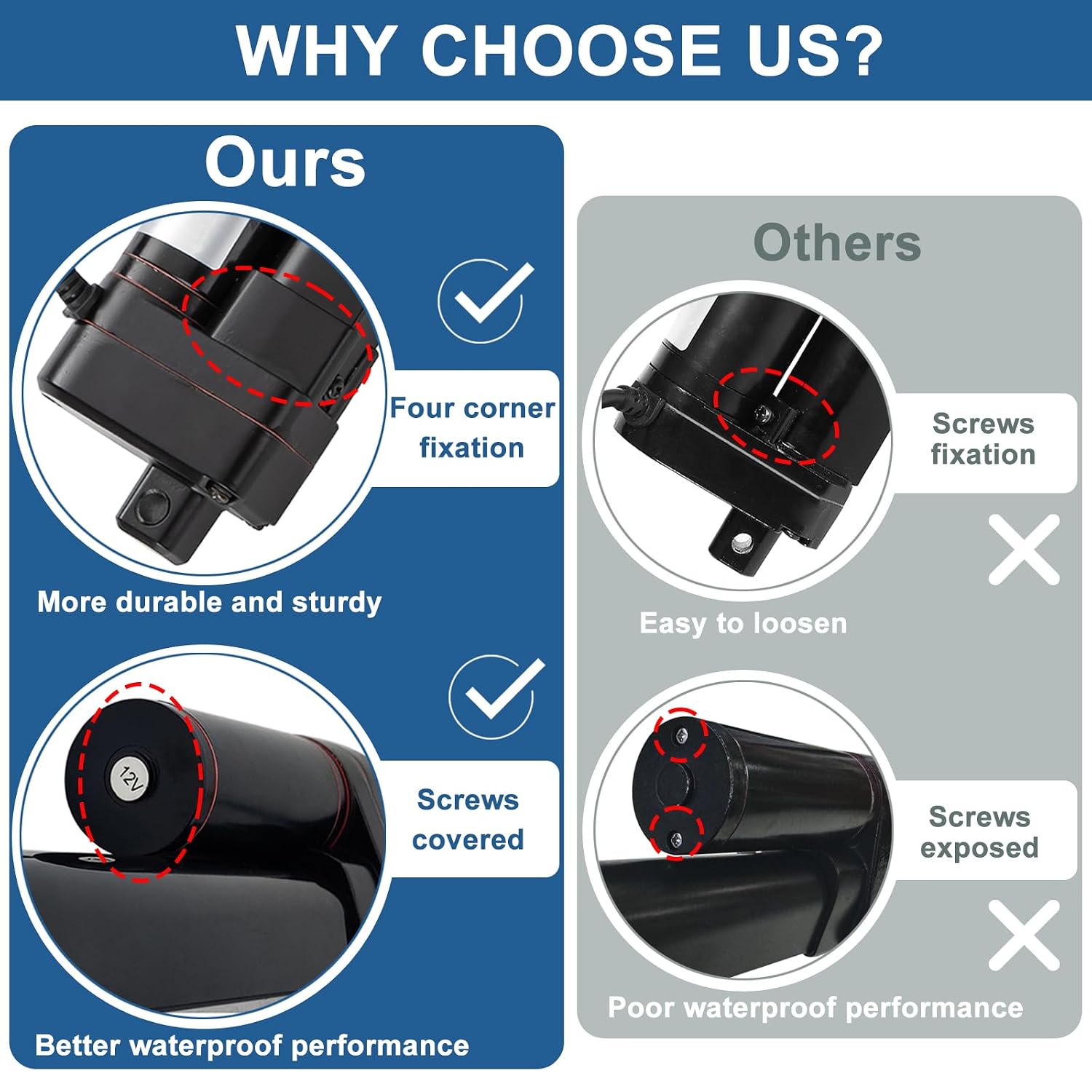

• Stable Four-Corner Base: Reinforced mounting structure improves stability while helping prevent loosening or breakage during operation.
• Automatic Limit Switches: Built-in limit switches automatically stop the motor when the actuator reaches either end of its travel range.
• Self-Locking Function: Strong self-locking mechanism holds the actuator securely in position when stopped, helping prevent unwanted load movement.

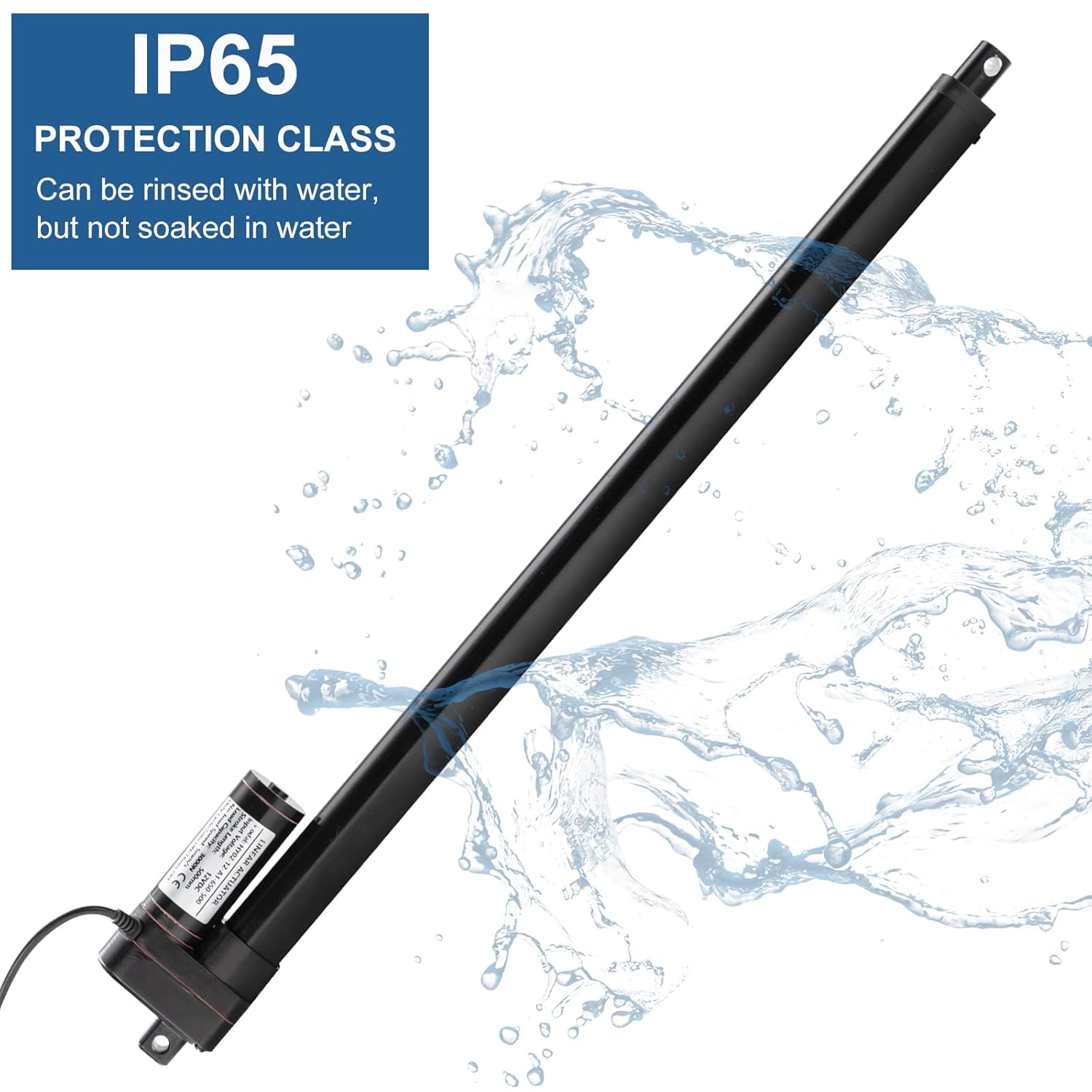

• IP65 Protection: Dust-resistant and protected against water splashes for compatible indoor and outdoor applications. Additional protection is recommended for prolonged outdoor exposure.

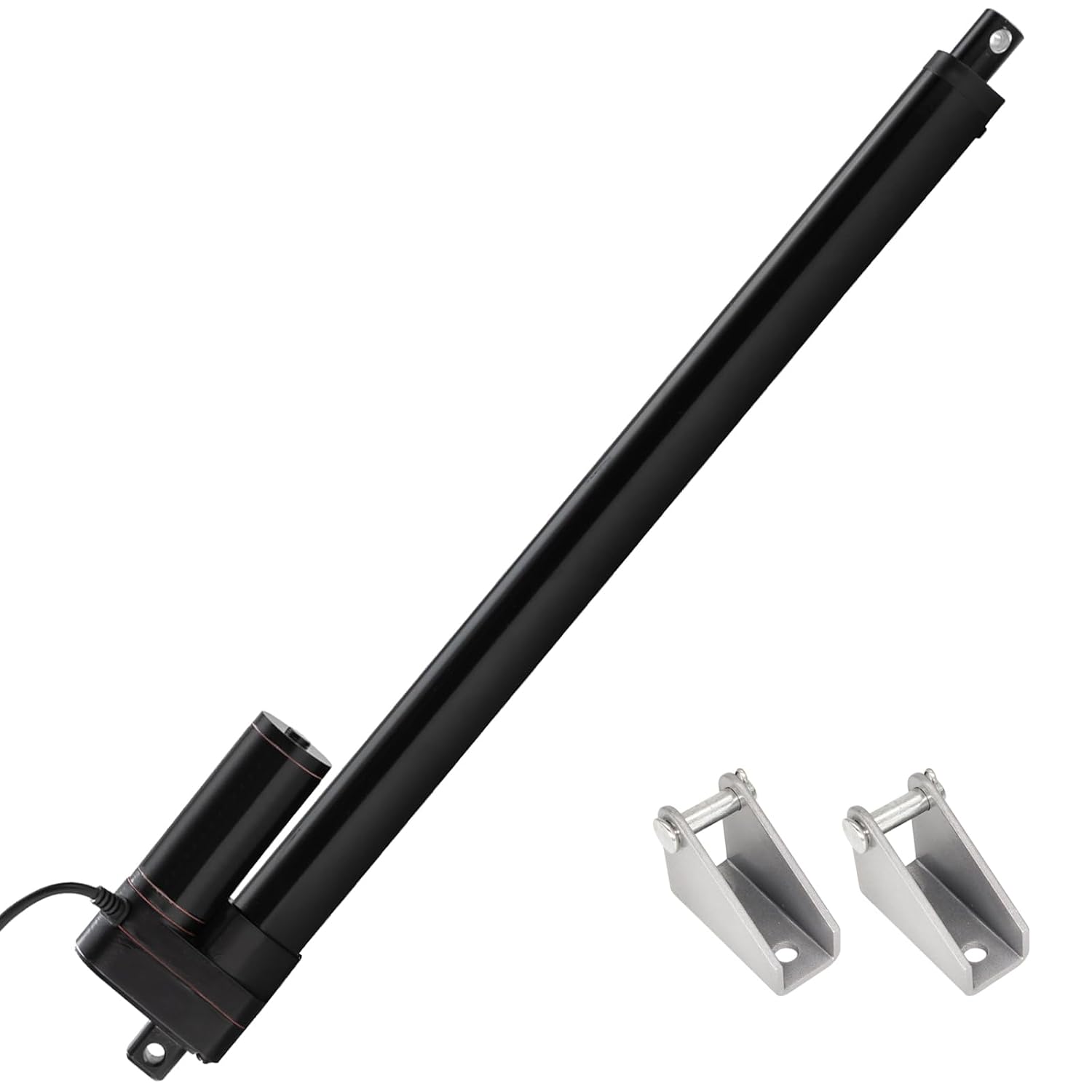

• Easy Installation: Supplied with mounting brackets for quick and straightforward assembly.
• Power Requirements: Maximum current draw is 5A, with recommended operating power of 40–50W and a 10% duty cycle.
• Optional Remote Operation: Can be paired with a compatible remote control and 12V 5A power adapter, which are not included.
• Wide Range of Applications: Suitable for electric lifting systems, door openers, adjustable beds, sofas, sunroofs, solar trackers, RV equipment, marine applications, and other automated projects.
